Model Y installation

Installation Guide for FullShade Model Y - Retractable Roof Sunshade for Tesla Model Y

01

Step One

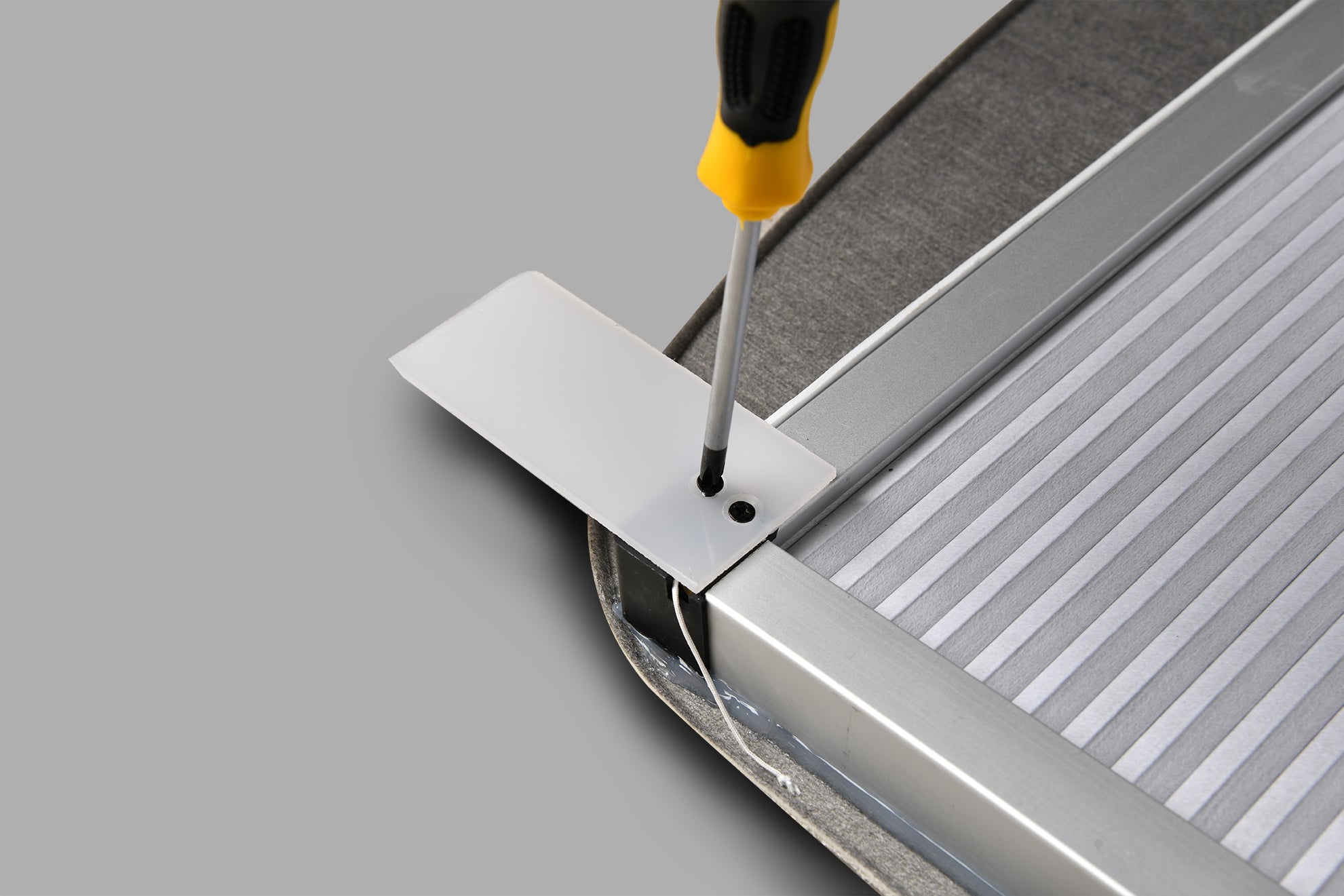

Find both rear white insert boards,turn 90°out and
secure them with back screws.your brand with your customers. Describe a product, share announcements, or welcome customers to your store.

02

Step Two

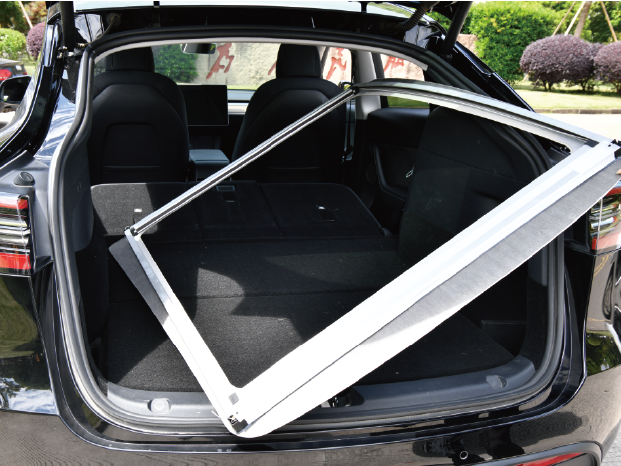

Put the sunshade into the car from the trunk with the side with the white insert facing the rear and facing up.

03

Step Three

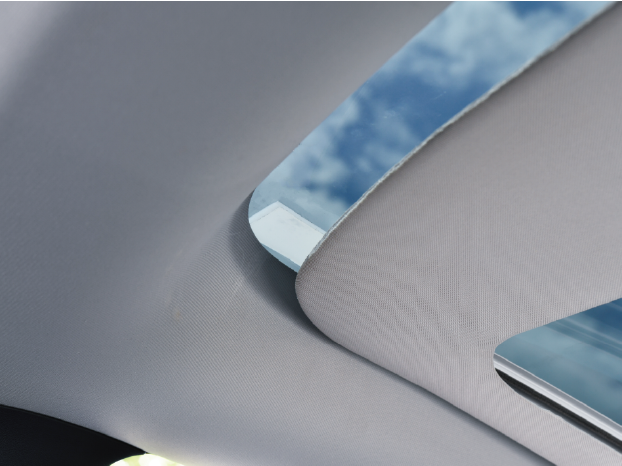

The rear frame of the sunshade (the side with the white insert) is close to the rear edge of the car glass,and push the white inserts on both sides into between the glass and the ceiling.

04

Step Four

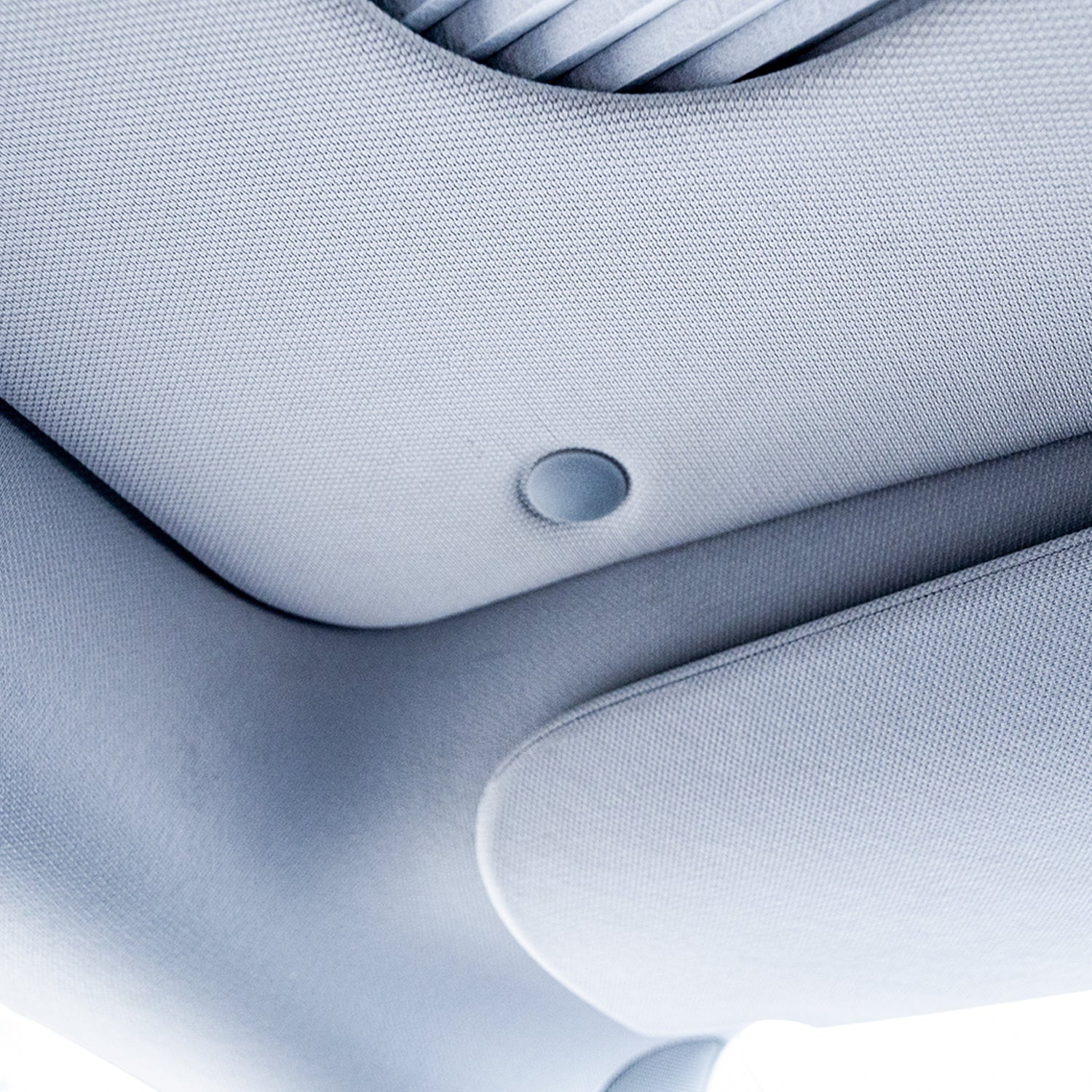

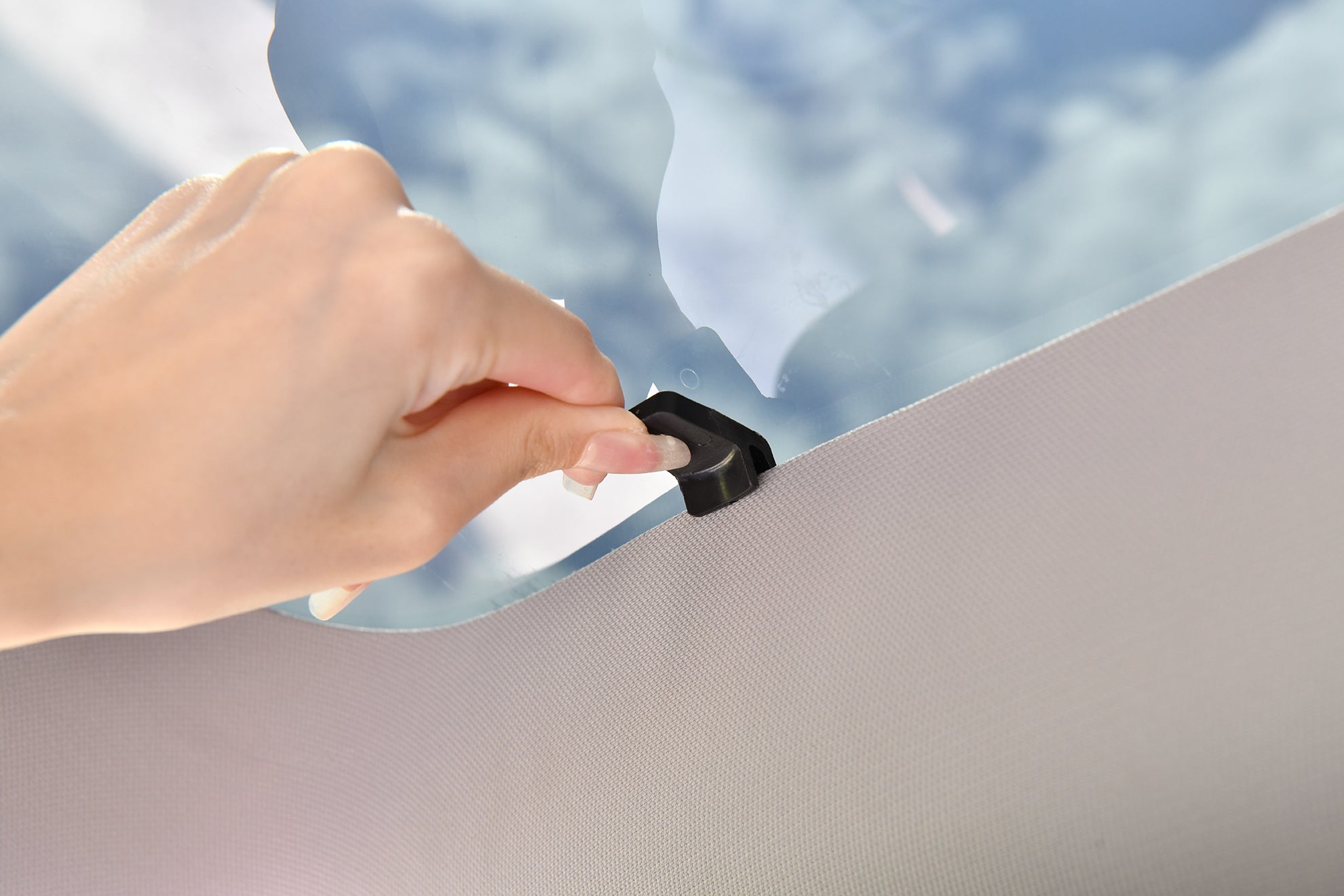

Lift the sunshade up, find the position of the front insert clips
according to the position of the fixing hole in front of the
sunshade, and insert the front insert clips to the ceiling.

05

Step Five

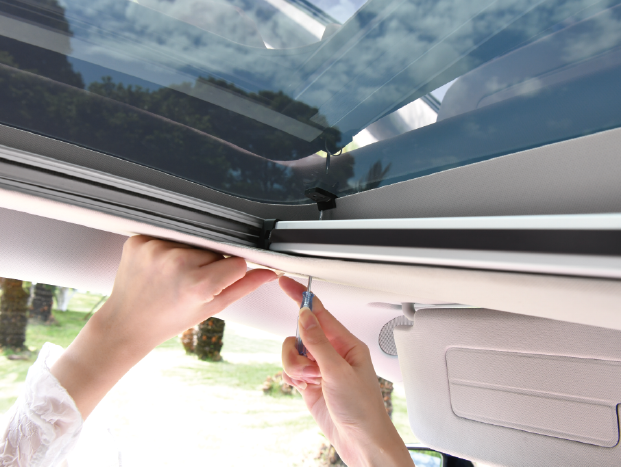

Use a 3mm screwdriver to find
the hole on the front insert clips
through the fixing hole on the
sunshade. Maneuver the front
clips a little bit if necessary.

06

Step Six

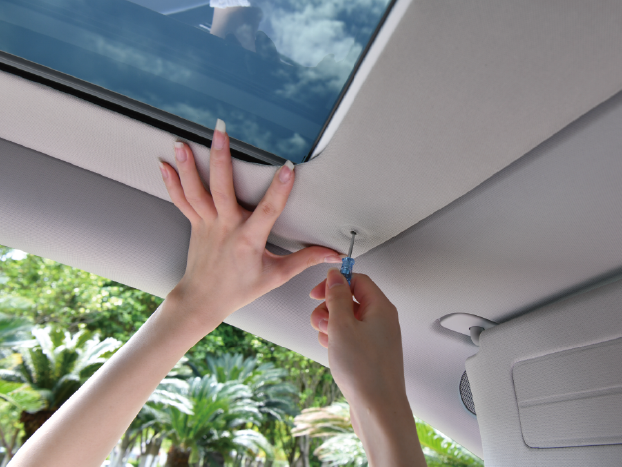

Fasten up the sunshade to
the front clips with front
screws.

07

Step Seven

Insert both decorative screws
into fixing holes to cover them.

01

Step One

Find both rear white insert boards,turn 90°out and
secure them with back screws.your brand with your customers. Describe a product, share announcements, or welcome customers to your store.

02

Step Two

Put the sunshade into the car from the trunk with the side with the white insert facing the rear and facing up.

03

Step Three

The rear frame of the sunshade (the side with the white insert) is close to the rear edge of the car glass,and push the white inserts on both sides into between the glass and the ceiling.

04

Step Four

Lift the sunshade up, find the position of the front insert clips
according to the position of the fixing hole in front of the
sunshade, and insert the front insert clips to the ceiling.

05

Step Five

Use a 3mm screwdriver to find
the hole on the front insert clips
through the fixing hole on the
sunshade. Maneuver the front
clips a little bit if necessary.

06

Step Six

Fasten up the sunshade to
the front clips with front
screws.

07

Step Seven

Insert both decorative screws
into fixing holes to cover them.
